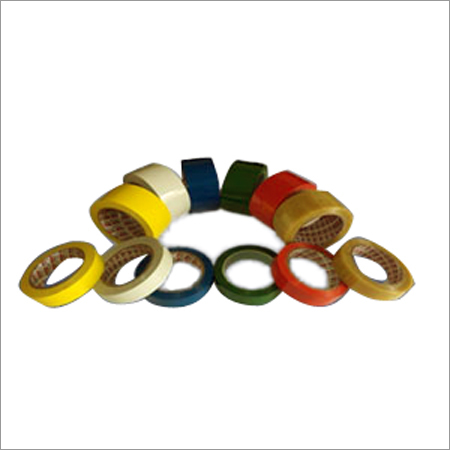

Polyester Tapes

Polyester Tapes
Polyester Tapes
Product Code : CG 11
Brand Name : CG-PPI ADHESIVE
Product Description

Our company is situated in Goa, India, engaged as a Manufacturer and Supplier of Polyester Tapes, for capacitor & coil application. The offered range is made as per the need of our patrons, by using the top grade quality components and advanced technologies, under the supervision of our skilled professionals. Due to its greater tear, excellent and high tensile strength, our products are highly admired by our customers. Furthermore, the range of Polyester Tapes is available to us at nominal rates.

Self Adhesive polyester film based Tapes encompass a wide field of Electrical insulation class B In the manufacture of capacitors and transformers for sealing the inner coil and for final wrapping.Available in variety of colours and widths. For core and layer insulation of transformers. CG-PPI CG1026, CG 1016 and CG 1028 are available with partial adhesive coating and fringing as per customers specification. Printed polyester tapes are available as per customer’s specification, for capacitor & coil application.
Self Adhesive tapes on polyester film are also available with combinations such as paper, Glass fibre and polyester non-woven. This laminated Substrate tapes have an excellent strength , greater tear strength and very high tensile strength in both directions.These tapes are ideally suited for phase insulation and outer wraps of motor coils. Special combinations are also available on request as per customers specifications.

Other Details :

  • Available in various of colors and widths.
  • CG-PPI CG1026, CG 1016 and CG 1028 are available with partial adhesive coating and fringing as per customers specification.
  • Ideally suited for phase insulation and outer wraps of motor coils.
Applications :
  • Cable jointing
  • Coil windings
  • Film and foil capacitors
  • Final wrapping of cast resin
  • General purpose insulations
  • Transformer windings

The Adhesive Tape available in both Type Rubber even acrylic adhesive. The application suited for sinera purpose insulation, coil winding

Specification : Polyester Adhesive Tape

Properties

Base Material

Polyester Film with Yellow colour

Adhesive Type

Rubber Adhesive

Adhesive Coating

Single Faced

Total Thickness

0.060mm

Adhesion to Steel

3.0 N/cm

Adhesion to Backing

2.5 N/cm

Tensile Strength

45 N/cm

Ultimate Elongation

80 %

Breakdown Voltage

5500 Volt

Operating Temperature Range

130 C

Insulation Class

B

Colour of Adhisive

White Adhesive on Yellow Colour

Features :

  • White coloured Adhesive
  • Very Low Opacity
  • High tack
  • Available in various colour like Yellow, Red, Blue Green & Black

Main Application :

  • Coil Windings
  • SMPS Transformer
  • General Purpose Insulater
  • Splicing application

Low Tack Tape :

Properties


Base Material

Opaque Polyester

Adhesive Type

Modified Acrylic Adhesive

Adhesive Coating

Single Faced

Total Thicknes

0.065

Adhesion to Steel

35 gms / 25mm

Tensile Strength

74 N/cm

Ultimate Elongation

88 %

Breakdown Voltage

8300 Volt

Colour

Transcelucent White

MAIN APPLICATIONS : Capacitor manufacturing Industries

FEATURES : Low Tack Adhesive tape.
